Cartridge Filter Housings

Cartridge filter housings are essential components at the point of use, dispense stations, filtering air and process gases ensuring efficient and effective filtration. We manufacture a wide range of both ASME code vertical and horizontal cartridge housings with standard flow rates of up to 1,800 m3/h.

We are a custom manufacturer of cartridge filter housings for industrial and process filtration needs, and we build housings to meet project specifications.

HFH Series Horizontal High Flow Cartridge Filter Housings

HFH Series Horizontal High Flow Cartridge Filter Housings

Horizontal, multi-purpose industrial design and ASME “U” & “UM” code high flow cartridge filter housings.

Key Features:

  • Horizontal or Vertical Orientation

  • Equivalent to 3M Cuno High Flow Filter Systems

  • Accepts multiple 40″ & 60″ High Flow cartridges

  • 150psig (10.3bar) @ 400°F(204.4°C) design pressure

  • Vessels available in carbon or stainless steel 304 or 316 (other materials available)

  • CE marking

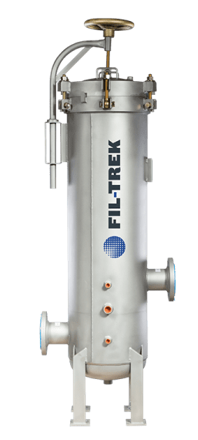

Multi-Cartridge Filter Housings GL Series

Multi-Cartridge Filter Housings GL Series

NSF/ANSI 61 Certified Multi-Cartridge Filter Housings. Multi-purpose industrial ASME “U” & “UM” code and industrial design housings.

Key Features:

  • Accepts multiple 10”, 20”, 30” or 40” cartridges

  • 150psig (10.3bar) @ 400ºF(204.4ºC) design pressure

  • Vessels are available in carbon or stainless steel 304 or 316

  • NSF 61 certified for SS304 and SS316 materials

  • Models can be designed to accept DOE and SOE cartridges

  • Swing bolt closure allows for quick element change out

  • CE marking

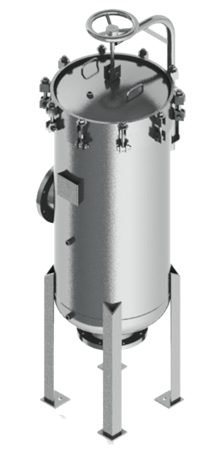

High-Purity Cartridge HPI Series

High-Purity Cartridge HPI Series

High-Purity Cartridge Filter Housings

High purity and crevice-free.

HPI cartridge filter housings provide the same effective filtration while meeting strict standards of sanitary/high-purity requirements. Sanitary housings are made of stainless steel 316 and all bolting, with legs and internals made of stainless steel 316. Housings can be electropolished to meet up to 32Ra specifications and crevice free welding can be used wherever required.

  • CE marking

Ideal for applications in critical food & beverage, microelectronics high purity water, Ultrapure process water or critical feedstocks for manufacturing processes.

Please see Process Filtration for a wide selection of bag, cartridge, and lenticular filters for use with our housings.
